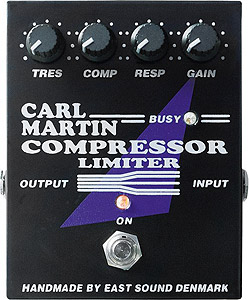

Carl Martin Compressor/Limiter has been specially developed to incorporate the same features and sonic clarity found in high quality professional studio compressors. To achieve this we incorporated a variable threshold, -variable compression ratio, -variable attack and release controls and of course, a gain level.
General Guidelines on the use of the Compressor/Limiter:
Threshold: Working anti clockwise, determines how much of the signal will be compressed. This is also dependent on how much signal is fed from the instrument.
Comp: Working clockwise, determines how much compression is applied to the signal allowed by the threshold setting.
Resp: Working clockwise, determines the attack/release times, going from slow to fast. In general, if you want to hear the compressor working with a crisp attack you should use slow times. If you require just a silent limiting you should use fast times.
Gain: Working clockwise, sets the overall gain.
Busy: Indicates the amount of compression being applied, even in bypass mode. The brighter it gets, the more compression is being applied.
In Depth
- Power: 100 or 115 or 230 VAC 50-60Hz - Power consumption: 2.4 Watts - S/N ratio: 105dB (clean out) - Input impedance: 1M Ohm - Output impedance: 200 Ohm - THD distortion: 0.05% - Threshold range: 60 dB - Compression range: from 1:1 to 1:00 - Responce range: from 125 mS to 12.5 mS - Gain range: +-20 dB - Dimension: 120(D) 95(W) 77(H) - Weight: 0.625Kg
Item Number:
Carl Martin Compressor Limiter
20996 0-0
