Fender Amp Center

Rolls MX153

Mix Mate 1/2 Rack Mic/Source Mixer

Product Code: 45378

Retail Price: $130.00

SALE PRICE!

$109.00

BUY TODAY AND SAVE $21.00 (16% from Retail)


Order the Rolls MX153 Now!

Ships free on most orders over $99.95
Click for Details

Click Here for Shipping Options

8thstreet Reward$

Seen a Lower Price?
Call 1-800-878-8882
or Click Here to let us know now!


Description
The MX153 is a one-half rack space, two microphone and three stereo source mixer. The unit provides a compact and efficient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones. Applications include background music and paging for small clubs, churches, schools, restaurants, etc. Each microphone channel has a Level and Tone control. Sources One and Two have Level adjustments and pass through combined Bass and Treble controls. Source Three has a Level adjustment only. The Microphone inputs are balanced XLR jacks, all Source inputs are stereo RCA except for the front 1/8 jack on CH3 for an MP3 player, etc. The main output is stereo RCA. An included 12VDC adapter (Rolls PS27) provides power to the unit. A series of six DIP switches provide important features to the MX153. Two switches apply the 12VDC of phantom power to the individual Microphone Inputs. A second switch sums the program material of Source Three to mono, and a third sums the overall output to mono. Another switch provides priority ducking to Source Three input allowing that channel to mute the other source inputs for use with a jukebox. The final switch configures Microphone Input One as a paging input, ducking the other microphone and Sources One and Two.
In Depth
  • Two Mic inputs with available phantom power
  • Treble or Bass cut controls for each mic
  • Three stereo source inputs
  • Bass and Treble controls on source 1 & 2
  • Signal muting (ducking) on mic 1 & source 3
  • Switchable Mono or Stereo mode on unbalanced outputs
  • Uses 12VDC power for easy use in mobile applications

  • Mic input Z 600 ohm balanced
  • Source input Z >10K ohms RCA
  • Mic Max input -14dBV
  • Max source input 24dBV
  • Phantom Voltage 12VDC
  • Max Gain: 60 dBV mic
  • Max Gain: 24 dBV/Channel source
  • Muting 60dBV
  • Power 12VDC 100Ma.
  • Size: 6.5 x 1.5 x 5 (W x H x D)
  • Weight: 2 lbs (.8Kg)

Item Number: Rolls MX153 [MX153]    45378 1-1
Have a question about the Rolls MX153 [MX153]?
Call us toll free at 1-800-878-8882.
View all Rolls products
View all Rolls products


Rolls MX153 [MX153]

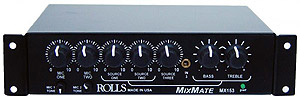

Rolls MX153&nbspLarge View Rolls MX153&nbspRear View
