Peavey RX14 Driver

High Frequency Compression Driver

Product Code: 45562

Retail Price: $69.95

SALE PRICE!

$54.39

BUY TODAY AND SAVE $15.56 (22% from Retail)


Order the Peavey RX14 Driver Now!

Ships free on most orders over $149.95
Click for Details

Click Here for Shipping Options

8thstreet Reward$
Seen a Lower Price?
Call 1-800-878-8882
or Click Here to let us know now!


Description
Peavey RX14 High Frequency Compression Driver.
In Depth
  • Throat Parameter: .938" / 23.8 mm
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 7.1 Ohms
  • DC Resistance: 6.8 Ohms
  • Power Capacity 1000 Hz to 20,000 Hz: 120 W peak 60 W program 30 W continuous
  • Sensitivity: 104 dB SPL 1 Watt at 1 meter On-axis on 90º H x 45º V horn
  • Nominal Efficiency: 30%
  • Frequency Response: 1.5 kHz to 20 kHz
  • Recommended Crossover: 1,800 Hz at 12 dB / Octave
  • Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
  • Diaphragm: Commercially pure titanium
  • Voice Coil Diameter: 1.4" / 34.4 mm
  • Voice Coil Material: Edge-wound ribbon with high temp Kapton bobbin
  • Flux Density: 11,500 gauss (1.15T)
  • Dimensions: 3.54" (90 mm) diameter x 2.40" (61 mm) depth
  • Horn Coupling Diameter: .938" (23.8 mm)
  • Horn Coupling Threads: Standard 1 3/8"

Item Number: Peavey RX14 Driver [03495480]    45562 2-2
Have a question about the Peavey RX14 Driver [03495480]?
Call us toll free at 1-800-878-8882.
View all Peavey products
View all Peavey products

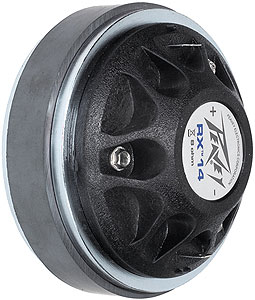

Peavey RX14 Driver [03495480]


View Additional Images

Peavey RX14 Driver Large View
