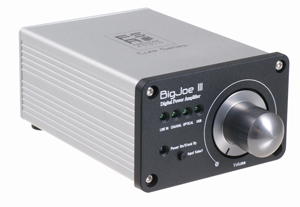

Firestone Audio Big Joe III - Black
20w per Channel @ 8ohms Digital Power Amplifier
Product Code: 60732
DescriptionThe Big Joe III Digital Power Amplifier has a 20w power output to give your audio that powerful boost.
The Big Joe III has a wide range of inputs including USB, Toslink Optical, Digital Coax and Analog line-in allowing multiple choices to enjoy your audio.
In Depth- Amplifier Structure- True digital signal path, Class-D
- Power Structure- Soft-Start circuit, Single-supply
-Power Mode- Stand by and Power on mode
- Input Select- USB / Coaxial / Optical / Line in<0.01 ohms
- Power Output- 8ohm @ 20W
- Circuit Protect- Output short / over current / over and under voltage / temperature protection
- Reclock- Includes Fi-reclockÂ® technology to reduce jitter
- USB Support Format- 16-bit, 32 / 44.1kHz / 48kHz
- SPDIF Support Format- 24-bit, 96kHz (MAX)
- Main Amp- TI - TAS5706
- ADC Chip- Cirrus - CS5343
- USB Chip- CMedia - CM102
- Receiver- TI - DIR9001
- USB interface- USB 1.1 minimum
- Digital Input- Coaxial and Optical
- Analog Input- 3.5mm mini jack
- Output- RJ45 jack (stereo) to Speakers
- Big Joe III Digital Power Amp
- a pair of speaker cables
- power adapter with AC power cable
- USB cable
- User Manual for the Big Joe
- An Allen Key
Item Number: Firestone Audio Big Joe III - Black 60732 0-0
