Designed for professional recording and critical applications in broadcast and live sound Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. Exceptionally low self-noise, wide dynamic range and high SPL capability. Vintage silver-matte finish on microphone and shock mount. Gold-plated, specially-contoured and aged, dual-diaphragms. Switchable 80 Hz hi-pass filter and 10 dB pad. Includes AT8449/SV shock mount
In Depth
Element Capacitor
Dynamic Range (Typical) 140 dB, 1 kHz at Max. SPL
Polar Pattern Cardioid
Phantom Power Requirements 48V (±4V)
Frequency Response 20 - 18,000 Hz
Switch 10 dB pad; roll-off
Open Circuit Sensitivity -35 dB (17.7 mV), ±2 dB re 1V at 1 Pa
Low Frequency Roll-off 80 Hz, 12 dB per octave
Impedance 250 ohms
Weight 14.5 oz (410 g)
Maximum Input Sound Level 149 dB SPL, 1 kHz at 1% T.H.D.
Output Connector XLRM-type
Signal to Noise Ratio 85 dB, 1 kHz at 1 Pa
Item Number:

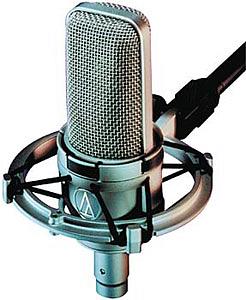

Audio Technica AT4047SV
9815 0-0
